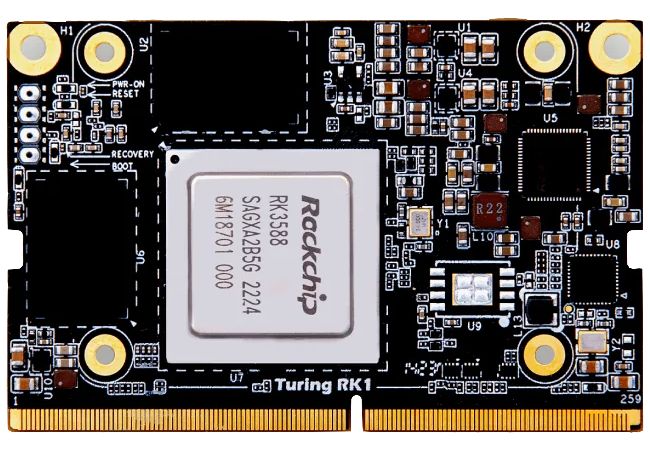

Turing RK1 (RK3588) === [![turing-rk1-cm.webp](./turing-rk1-cm.webp)](./turing-rk1-cm.webp) ##### Specifications
**Instruction Set**ARMv8-A (64-bit)
**OS Support**Ubuntu Server 22.04 LTS
**CPUs**8× | 4× ARM Cortex-A76 | 4× ARM Cortex-A55 | DynamIQ
**GPU**G610 GPU Support OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 Proprietary 2D hardware acceleration engine
**NPU**6 TOPS
**RAM**LPDDR4 up to 32 GB
**Storage**32 G eMMC 5.1, SD 3.0
**Ethernet**1000Mbps
**USB**2x USB 3.0, 2x USB 2.0
**PCIe**PCIe Gen3
**MIPI**4-Lane MIPI-DSI, 4-Lane MIPI-CSI
**Digital Audio port**2× I2S
**HDMI**HDMI 2.1, 8K@60fps
**Video input port**2× MIPI-CSI RX 4× lanes 1× MIPI-CSI DPHY RX 4× lanes
**Display output port**1× MIPI-DSI DPHY 2× lanes 1× HDMI 2.1 1× DP 1.4
**VPU**VPU 2.0, supporting 8K video
**Video Encoder**H264, 8K@30FPS VP9/H265, 8k@60FPS AV1/AVS2, 4k@60FPS
**Video Decoder**H265/H264/VP9/AV1/AVS2 up to 8K@60fps
**Power**5V/3A via USB Type-C
**Operating Temp**-20°C to 70°C
**Storage Temp**-40°C to 85°C
**Weight**17g
**Form Factor**69.6mm x 45mm 260-pin SO-DIMM connector
# TuringPi hosts ## Flash modules https://armbian.com/fr ### First login > root/1234 Add pleb user and change password to transatlantique ### Complete setup ```bash sudo usermod -aG sudo pleb echo "pleb ALL=(ALL:ALL) NOPASSWD:ALL" | sudo tee /etc/sudoers.d/pleb sudo hostnamectl set-hostname ... (. /etc/lsb-release && curl -s https://packagecloud.io/install/repositories/github/git-lfs/script.deb.sh | sudo env os=ubuntu dist="${DISTRIB_CODENAME}" bash) sudo apt update && sudo apt install -y vim git-all git-lfs curl wget screenfetch net-tools open-iscsi python3 python3-pip build-essential libssl-dev libffi-dev python3-dev wireguard sudo vim /etc/hosts ``` ``` 127.0.0.1 localhost 127.0.1.1 .local # The following lines are desirable for IPv6 capable hosts ::1 ip6-localhost ip6-loopback fe00::0 ip6-localnet ff00::0 ip6-mcastprefix ff02::1 ip6-allnodes ff02::2 ip6-allrouters ff02::3 ip6-allhosts # 192.168.1.11 bob 192.168.1.12 carlo # 192.168.1.15 krabs 192.168.1.17 bernie # 192.168.1.14 sandy 192.168.1.13 gary 192.168.1.16 sheldon 192.168.1.19 pearl # 192.168.1.18 patrick 192.168.1.20 karen # 192.168.1.53 retropie ``` #### On PC ```bash ssh-copy-id -f -i ~/.ssh/id_ed25519.pub pleb@192.168.1.xxx ssh-copy-id -f -i ~/.ssh/id_ed25519.pub pleb@ ``` #### On host ```bash vim .ssh/authorized_keys sudo vim /etc/ssh/sshd_config ``` ``` # ---------------------------------------- PasswordAuthentication no PermitEmptyPasswords no # ---------------------------------------- ``` ``` ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIBLk24u7FT8PhAdM8EVUFGlOi0hle4CW8L284E1foUhS julien@julien-pc ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIE6wr+DUbcfVTltoWT6gbPRY3geUYNhgN7/CLcMaMu0B eliot@toile-win ``` ### Format and mount the disks ```bash sudo fdisk -l **With disk ** sudo fdisk /dev/ (create new primary partition) sudo mkfs -t ext4 /dev/ sudo blkid -s UUID -o value /dev/ ``` ### UUIDs ``` sandy : 195a1632-e6b3-41a4-8b2b-eea2fde75cfc gary : 7395f5ad-c422-4a09-9a1f-5c8bf96b00f5 sheldon : 0a52875c-41a6-419f-b322-33ed2cec9717 pearl : da49c557-732e-4bbc-b002-f9c627e2cf82 ``` ### Add mount point to fstab ```bash sudo mkdir -p /mnt/ echo "UUID=... /mnt/ ext4 defaults 0 0" | sudo tee -a /etc/fstab ``` ```bash sudo mount -a sudo systemctl daemon-reload df -h /mnt/ ``` --- # ? ### GPU Drivers ```bash cd /usr/lib && sudo wget https://github.com/JeffyCN/mirrors/raw/libmali/lib/aarch64-linux-gnu/libmali-valhall-g610-g6p0-x11-wayland-gbm.so cd /lib/firmware && sudo wget https://github.com/JeffyCN/mirrors/raw/libmali/firmware/g610/mali_csffw.bin sudo apt update && sudo apt install -y mesa-opencl-icd sudo mkdir -p /etc/OpenCL/vendors && echo "/usr/lib/libmali-valhall-g610-g6p0-x11-wayland-gbm.so" | sudo tee /etc/OpenCL/vendors/mali.icd sudo apt install -y ocl-icd-opencl-dev sudo apt install -y libxcb-dri2-0 libxcb-dri3-0 libwayland-client0 libwayland-server0 libx11-xcb1 sudo apt install -y clinfo vulkan-tools ``` ```bash clinfo vulkaninfo ``` --- ### Documentation [https://docs.turingpi.com](https://docs.turingpi.com) ##### help.turingpi.com jme69@pm.me Ln4@iJMNn85h2Xrx [https://help.turingpi.com/hc/en-us](https://help.turingpi.com/hc/en-us "https://help.turingpi.com/hc/en-us") ##### Server World [https://www.server-world.info/en/note?os=Debian\_12&p=download&f=1](https://www.server-world.info/en/note?os=Debian_12&p=download&f=1)
