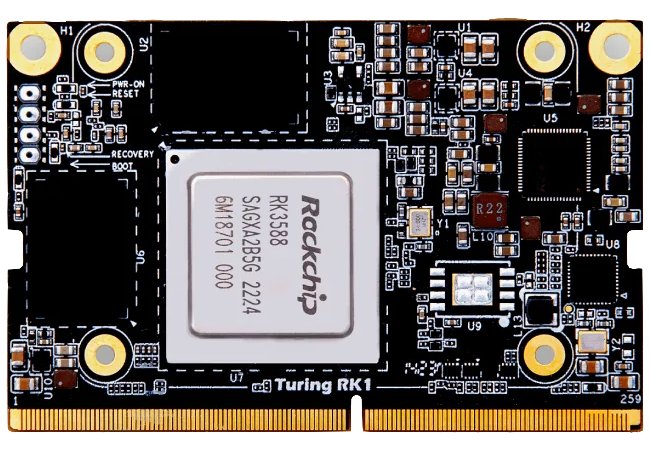

Turing RK1 (RK3588)

Specifications

**Instruction Set**	ARMv8-A (64-bit)
**OS Support**	Ubuntu Server 22.04 LTS
**CPUs**	8× | 4× ARM Cortex-A76 | 4× ARM Cortex-A55 | DynamIQ
**GPU**	G610 GPU Support OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 Proprietary 2D hardware acceleration engine
**NPU**	6 TOPS
**RAM**	LPDDR4 up to 32 GB
**Storage**	32 G eMMC 5.1, SD 3.0
**Ethernet**	1000Mbps
**USB**	2x USB 3.0, 2x USB 2.0
**PCIe**	PCIe Gen3
**MIPI**	4-Lane MIPI-DSI, 4-Lane MIPI-CSI
**Digital Audio port**	2× I2S
**HDMI**	HDMI 2.1, 8K@60fps
**Video input port**	2× MIPI-CSI RX 4× lanes 1× MIPI-CSI DPHY RX 4× lanes
**Display output port**	1× MIPI-DSI DPHY 2× lanes 1× HDMI 2.1 1× DP 1.4
**VPU**	VPU 2.0, supporting 8K video
**Video Encoder**	H264, 8K@30FPS VP9/H265, 8k@60FPS AV1/AVS2, 4k@60FPS
**Video Decoder**	H265/H264/VP9/AV1/AVS2 up to 8K@60fps
**Power**	5V/3A via USB Type-C
**Operating Temp**	-20°C to 70°C
**Storage Temp**	-40°C to 85°C
**Weight**	17g
**Form Factor**	69.6mm x 45mm 260-pin SO-DIMM connector

TuringPi hosts

Flash modules

https://armbian.com/fr

First login

root/1234 Add pleb user and change password to transatlantique

Complete setup

sudo usermod -aG sudo pleb
echo "pleb ALL=(ALL:ALL) NOPASSWD:ALL" | sudo tee /etc/sudoers.d/pleb

sudo hostnamectl set-hostname ...

(. /etc/lsb-release &&
curl -s https://packagecloud.io/install/repositories/github/git-lfs/script.deb.sh |
sudo env os=ubuntu dist="${DISTRIB_CODENAME}" bash)
sudo apt update && sudo apt install -y vim git-all git-lfs curl wget cryptsetup dmsetup open-iscsi screenfetch net-tools open-iscsi python3 python3-pip build-essential libssl-dev libffi-dev python3-dev wireguard

sudo vim /etc/hosts

127.0.0.1       localhost
127.0.1.1       <hostname> <hostname>.local

# The following lines are desirable for IPv6 capable hosts
::1             ip6-localhost ip6-loopback
fe00::0         ip6-localnet
ff00::0         ip6-mcastprefix
ff02::1         ip6-allnodes
ff02::2         ip6-allrouters
ff02::3         ip6-allhosts

#
192.168.1.11    bob
192.168.1.12    carlo
#
192.168.1.15    krabs
192.168.1.17    bernie
#
192.168.1.14    sandy
192.168.1.13    gary
192.168.1.16    sheldon
192.168.1.19    pearl
#
192.168.1.18    patrick
192.168.1.20    karen

#
192.168.1.53    retropie

On PC

ssh-copy-id -f -i ~/.ssh/id_ed25519.pub pleb@192.168.1.xxx
ssh-copy-id -f -i ~/.ssh/id_ed25519.pub pleb@<hostname>

On host

vim .ssh/authorized_keys

sudo vim /etc/ssh/sshd_config

# ----------------------------------------
PasswordAuthentication no
PermitEmptyPasswords no
# ----------------------------------------

ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIBLk24u7FT8PhAdM8EVUFGlOi0hle4CW8L284E1foUhS julien@julien-pc
ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIE6wr+DUbcfVTltoWT6gbPRY3geUYNhgN7/CLcMaMu0B eliot@toile-win

Format and mount the disks

sudo fdisk -l

**With disk <xxx>**
sudo fdisk /dev/<xxx>
(create new primary partition)

sudo mkfs -t ext4 /dev/<xxxp1>
sudo blkid -s UUID -o value /dev/<xxxp1>

UUIDs

sandy   : 195a1632-e6b3-41a4-8b2b-eea2fde75cfc
gary    : 7395f5ad-c422-4a09-9a1f-5c8bf96b00f5
sheldon : 0a52875c-41a6-419f-b322-33ed2cec9717
pearl   : da49c557-732e-4bbc-b002-f9c627e2cf82

Add mount point to fstab

sudo mkdir -p /mnt/<folder>

echo "UUID=... /mnt/<folder>      ext4    defaults    0       0" | sudo tee -a /etc/fstab

sudo mount -a
sudo systemctl daemon-reload

df -h /mnt/<folder>

---

?

GPU Drivers

cd /usr/lib && sudo wget https://github.com/JeffyCN/mirrors/raw/libmali/lib/aarch64-linux-gnu/libmali-valhall-g610-g6p0-x11-wayland-gbm.so

cd /lib/firmware && sudo wget https://github.com/JeffyCN/mirrors/raw/libmali/firmware/g610/mali_csffw.bin

sudo apt update && sudo apt install -y mesa-opencl-icd
sudo mkdir -p /etc/OpenCL/vendors && echo "/usr/lib/libmali-valhall-g610-g6p0-x11-wayland-gbm.so" | sudo tee /etc/OpenCL/vendors/mali.icd

sudo apt install -y ocl-icd-opencl-dev
sudo apt install -y libxcb-dri2-0 libxcb-dri3-0 libwayland-client0 libwayland-server0 libx11-xcb1
sudo apt install -y clinfo vulkan-tools

clinfo

vulkaninfo

---
